excelToJson | Itential

The excelToJson task converts a Base64-encoded Excel file to JSON format.

Properties

Incoming	Type	Description
`input`	String	Required. The Base64-encoded Excel content to convert.
`headersIncluded`	Boolean	Required. Whether the input includes headers.
`headerRow`	Array	Optional. An array of headers to use for mapping.

Outgoing	Type	Description
`response`	String	The spreadsheet values converted to JSON format.

How to configure

In this example, an Excel spreadsheet is uploaded as the workflow input. The input reference variable is the uploaded spreadsheet (static), and headersIncluded is set to true.

You can convert an Excel spreadsheet to Base64 format using an online converter tool of your choice.

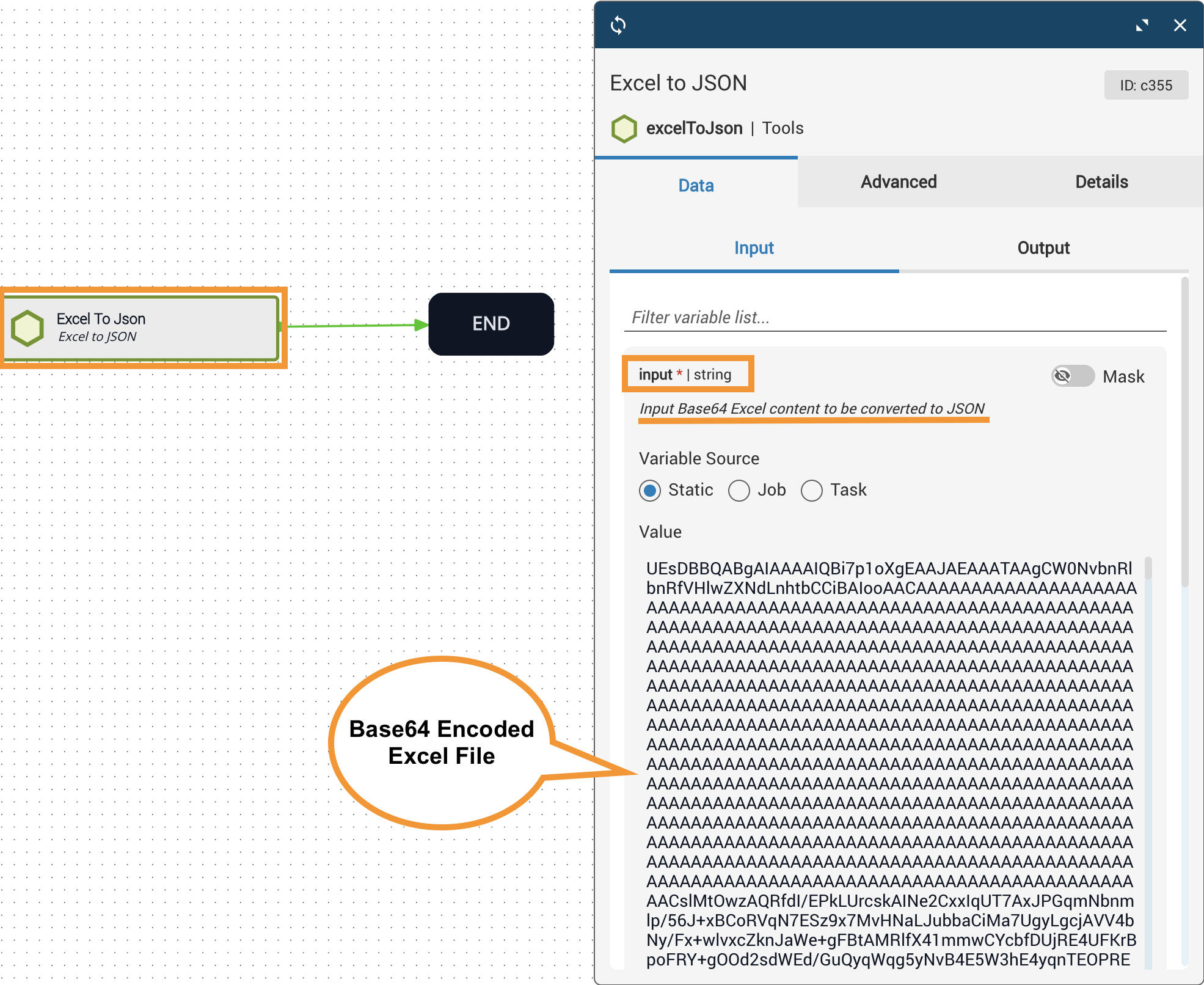

Incoming tab showing input mapped to the uploaded Base64 spreadsheet

The response returns the spreadsheet values in JSON format. View the outgoing properties in Job (Operations) Manager after the task completes.

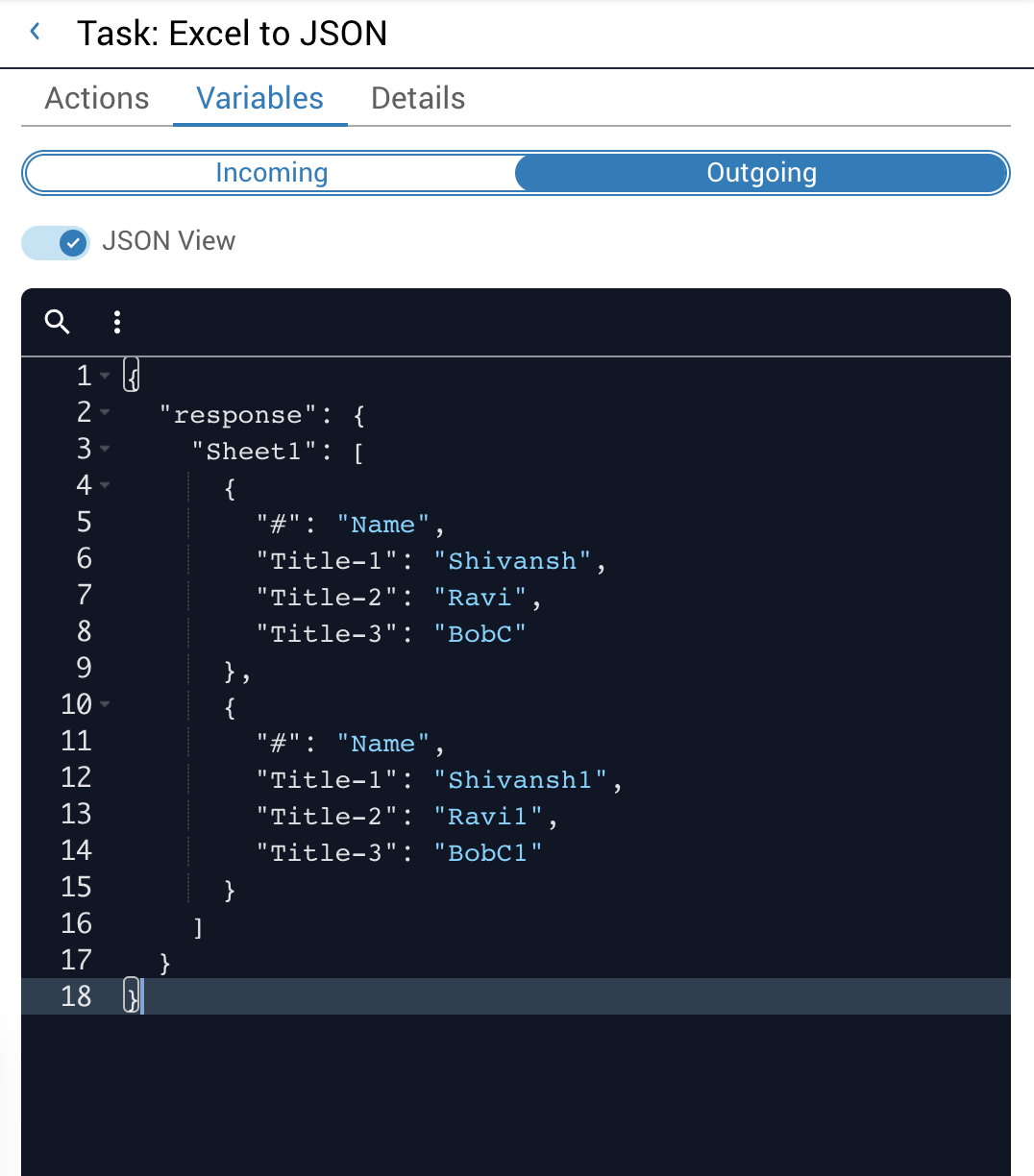

Outgoing tab showing spreadsheet values converted to JSON

Potential use case

Suppose you are building a workflow and need to convert user inputs to JSON. Instead of filling out a JSON form to provide job variable inputs, you can upload a spreadsheet with the workflow input variables. After the spreadsheet values are converted to JSON with excelToJson, the variables can be queried from the output and used in further tasks.

References

For related information, see the excelToJson API reference.
