Configure Azure AD

The Azure adapter allows SSO (single sign-on) in Azure over the OpenID Connect (OIDC) protocol. Use this guide to configure the Azure AD server and set up adapter-azure_aaa for Itential Platform.

The information provided was developed in a lab environment. Input for various settings and fields should be populated with details specific to your production environment.

This page outlines the process and permissions required for the Azure AAA adapter to communicate with the Azure AD system.

Admin privileges in the Azure AD system are required to perform the initial setup.

Create a new application

Open App Registration

Log in to the Azure AD system and access the Azure AD page. Select the App Registration section and click New registration.

Create a separate application for each environment so that passwords and configurations are unique to each environment.

Complete the application fields

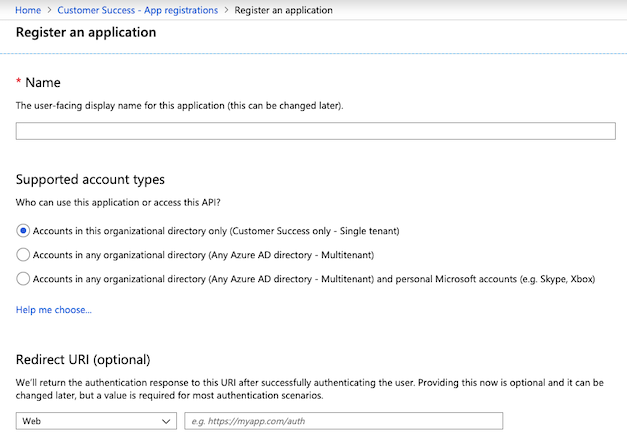

Fill in the registration form. For example:

Name: Itential Automation Platform - Production
Supported Account Types: Default
Redirect URI: Leave blank; you will update it later.

Click Register.

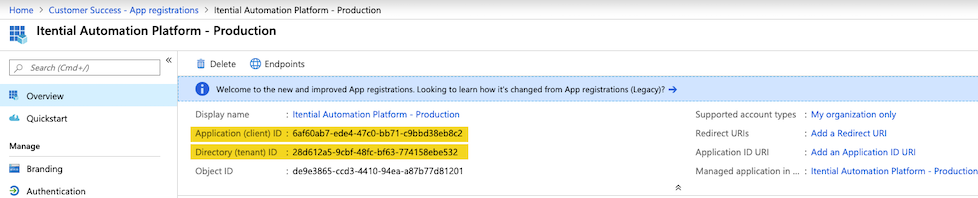

Record the Application ID and Tenant ID

Review the application details. Record the Application ID — it will be used by the adapter as the client id. Record the Tenant ID — it will be used by the adapter as the tenant id.

Configure authentication settings

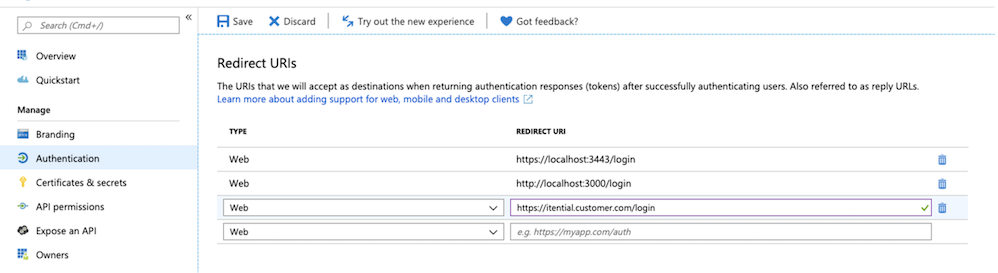

Set redirect URIs

Go to the Authentication section. Verify the Redirect URIs. These are the acceptable return URIs after authentication. If a redirect is attempted to a URI that does not exist here, the redirect will fail. Pay close attention to ports — you must have a URI for each port.

Typically the URL is the same as the sign-on URL, or a sign-on URL with a specific SSO page. For example:

https://itential.customer.com/login
https://localhost:3443/login

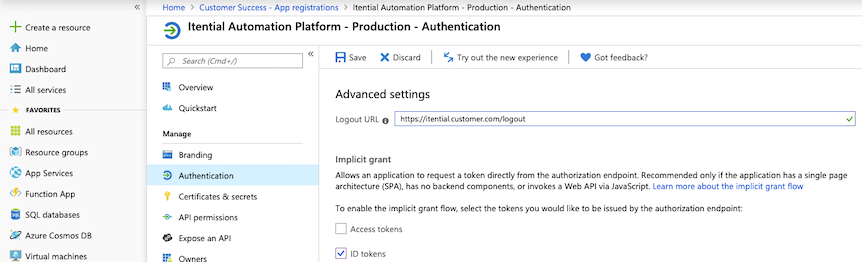

Enable ID tokens

Enable the ID tokens under Advanced settings.

Set application permissions

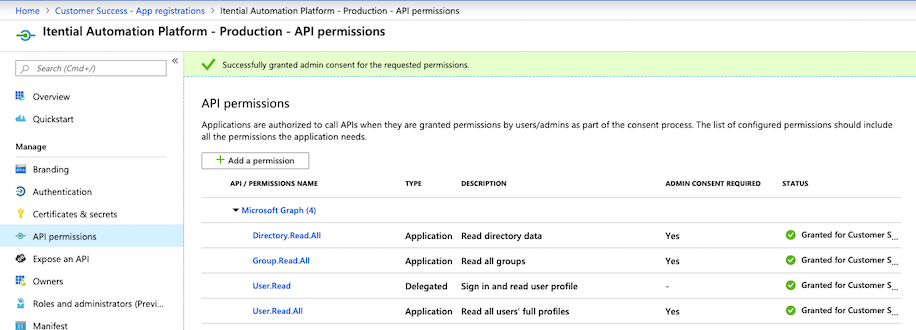

Add API permissions

Go to the API Permissions section. Click + Add a permission. Find and select Microsoft Graph API from the list.

Select required permissions

From the list of Application Permissions, check the following:

Directory.Read.All
Group.Read.All
User.Read.All

No delegated permissions are required. Click Add Permission.

Choose a credential type

The Azure AAA adapter authenticates to Azure AD with a client secret or a certificate:

Client secret: Supported in all Platform 6 releases. To set it up, see Set the API key.
Certificate: Supported in Platform 6.6 and later. Certificate-based authentication (CBA) replaces the shared secret with a certificate and private key that stay on your Platform servers. To set it up, see Upload a certificate.

If you configure both, the adapter uses the certificate and ignores the client secret. To switch back to the client secret, remove the certPath and keyPath properties from the adapter’s service configuration.

Set the API key

Create a new password

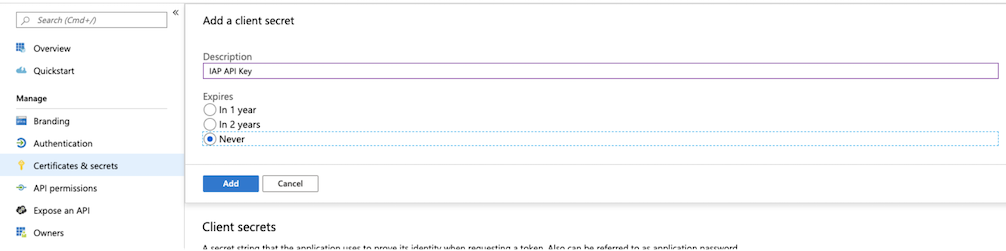

Go to Settings > Keys and create a new password by completing the following fields:

Description: IAP API Key
Expires: Never
Value: <super_secret_password>

Expiration policies vary across organizations. Follow the guidelines for your organization.

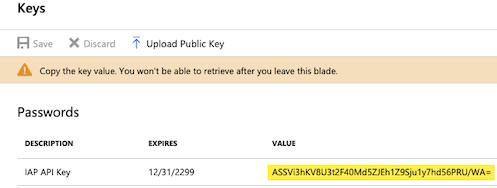

Save the value

Click Add. A warning message displays reminding you to keep a safe copy of the Value, which has been encrypted. This value is used in the secret field by the Azure AAA adapter.

Upload a certificate

Platform 6.6.0+

Prepare the certificate and private key

Get a PEM-formatted certificate and its private key. You can use a certificate from a public or internal certificate authority, or a self-signed certificate.

Copy both files to the same location on every Platform server in your environment. The adapter’s service configuration is shared across servers, so each server reads the files from the same paths.

Upload the public certificate

In your registered application, go to Certificates & secrets > Certificates and select Upload certificate. Choose your certificate file (.cer, .pem, or .crt), enter a description, and select Add.

Upload only the public certificate. Never upload the private key to Azure AD. The private key stays on your Platform servers.

Record the file paths

Record the paths to the certificate and private key on your Platform servers. The Azure AAA adapter uses these values in the certPath and keyPath fields.

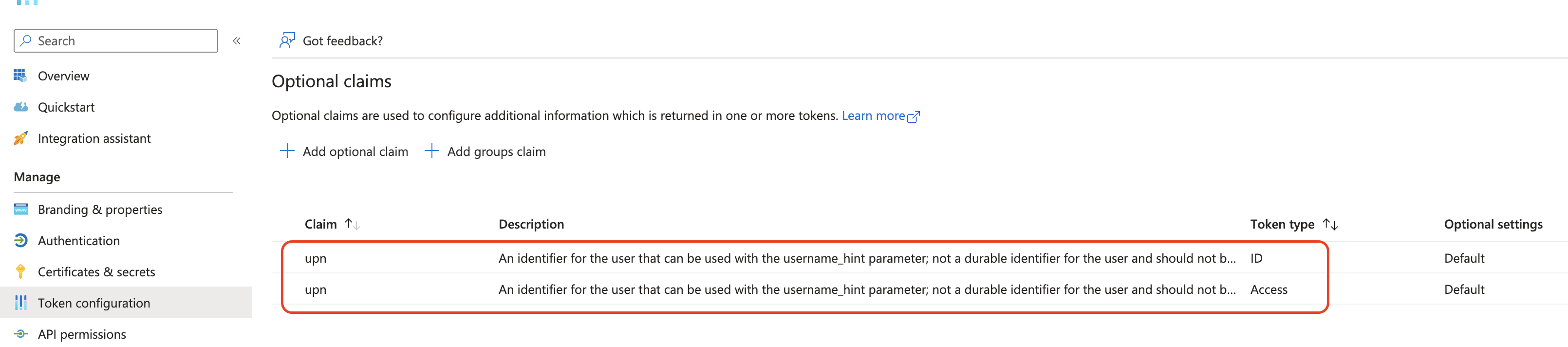

Add optional claims (Access Token v2.0)

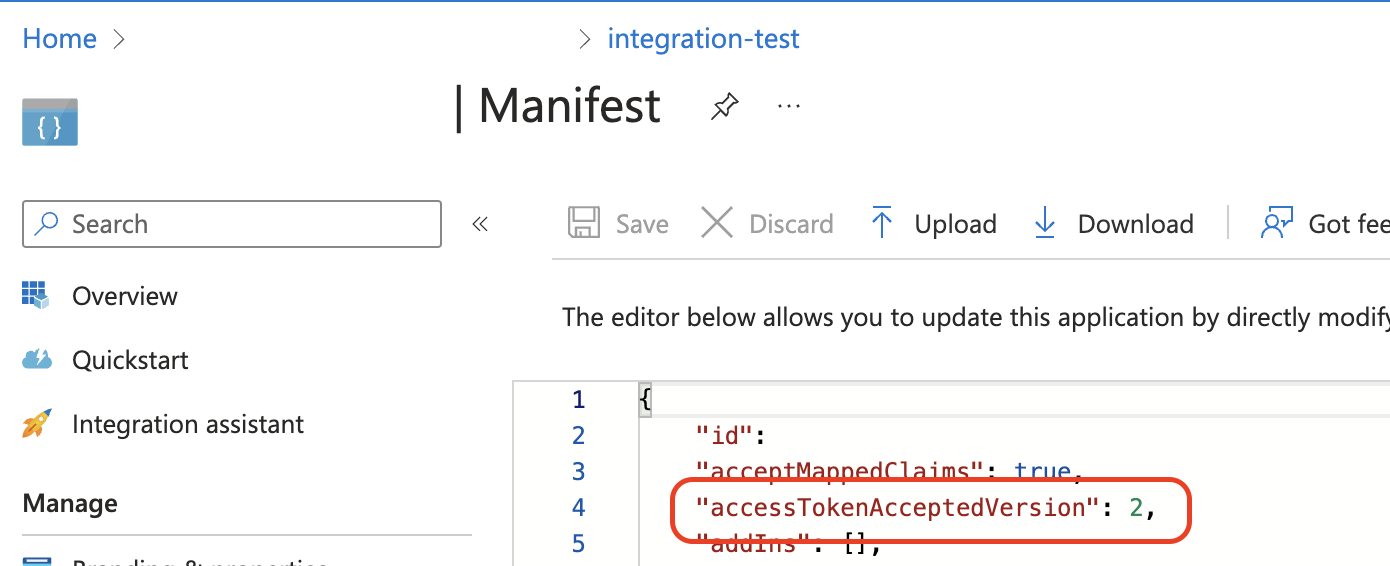

If you have configured your registered application Manifest to use accessAcceptedTokenVersion: 2, you must create an optional claim for upn on your ID tokens and access tokens. The upn claim is used by the Azure adapter internally to handle account routing in Itential Platform and is required.
