The forEach task executes a loop inside a job. It iterates over a passed array, and for each element, it executes a series of tasks. The forEach task is helpful when using tasks that operate on one thing, such as a device, but then you need to repeat those steps over a set of devices. Building a loop in the workflow is more efficient than writing new tasks.

The forEach task is unique as it supports transitions that follow the loop value. When a transition is created to follow the loop, it is distinguished with a blue arrow. The series of tasks at the end of the blue arrow dictates what will be executed for every iteration of the forEach task. A forEach task also supports transitions bound to the success and error finish states. When forEach completes its iterations (barring any errors), it returns with a success finish state and the job then follows the transitions bound to that finish state.

Properties

Direction	Property	Description
Incoming	`data_array` (required)	Specify the array of items `forEach` will use in its iterations. The value can come from a job variable, a static value, or an earlier task’s outgoing variable. If the reference task is a job variable or earlier task, the reference variable shows a dropdown of available variable names for selection. If the reference task is static, the reference variable becomes a text edit field.
Outgoing	`current_item`	In each iteration, the `forEach` task copies the next `data_array` element’s value into its outgoing variable `current_item`. You may create a job variable from `current_item`. The immutable outgoing variable `current_item` remains, and a new mutable job variable is created. When creating a job variable, provide a new name to avoid name conflicts and provide clarity.

Examples

Replace retired device group

Use the forEach workflow operation task for a job that replaces a retired device group used on every device with a new group.

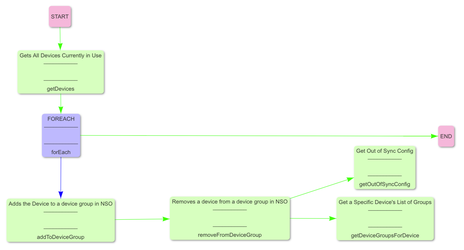

forEach task replacing a retired device group across all devices

When the job begins, the first automatic task returns a list of all devices. The device list is passed to a forEach task which executes four tasks for every device passed. The four tasks in the example above remove each device from the retired device group, add each device to the new device group, and then concurrently get any configuration on the device not in sync with its modeled configuration while getting all groups for the device. After the last device is processed, the forEach task returns with a success finish state, and the job completes.

Handle errors inside forEach loops

Use the following to handle errors inside forEach loops.

Create a newVariable task

Create a newVariable task and name the variable saved_errors as an empty array.

Add a push task inside the loop

Inside the forEach loop, create a push task to transition saved_errors from the task where errors occur (task X) to the push task. Push the errors into the array.

Evaluate the errors after the loop

After the forEach loop, query the job variable and evaluate if the length is zero or not. Handle accordingly if the evaluation state is not successful.

Error handling pattern inside a forEach loop

Tasks within forEach branches

Tasks within a forEach branch should not connect to the END task. The forEach branch is akin to a tree branch. It is best to think of END tasks as “inside” of the forEach loop — they should not interact with any other task or branch of the workflow, only within the loop. The workflow builder will allow you to connect a task, but doing so will yield unintuitive results.
